PVC plastic grinder machine

PVC Grinder Machine:
1, Unit price:
2, Delivery time: 20 days
3, Payment: 40% deposit in advance, the balance 60% was paid before shipment
4, Packing: plywood case
5, Warranty period: 12 months
6, Voltage condition: 220V/380V/440V/415V etc; 50Hz or 60Hz

Send Inquiry
Description

Parameter
Products Description

It can process and grind materials such as PVC, PE, PS, foamed PE, PVC, SBS, EVA, soft PVC, rubber, leather, plant fibers and other materials.
The adoption of a new tool structure has increased production and enhanced the wear resistance of the tools.
High output, fine grinding, energy-saving and environmentally friendly.
It has a wide range of applications and can grind plastics such as PVC, PE, PS, PA, and PC.
It is convenient to install and maintain. Just open the door cover to clean.
The entire plastic grinding process is fully sealed, with no dust pollution.
The particle size of the powder can be adjusted from 10 to 120 mesh, and the adjustment is convenient.
The cooling system of the plastic grinding machine adopts a combined cooling method of air and water.

Keywords: plastic grinder, plastic grinder machine, plastic machinery, plastic extruder, plastic crusher, plastic crusher machine, plastic mixing machine, plastic mixer, plastic pipe making machine, plastic pipe production line, plastic pipe extrusion line, plastic pipe extruder, plastic extruder,



Tags:

Technical parameter

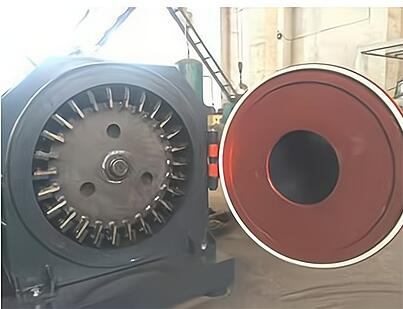

PVC cutter disc

PVC cutter disc

Blade

Blade

Milling disk

Milling disk

vibrating screen

vibrating screen

Main technical parameter:

Model SMP-400 SMP-500 SMP-600 SMP-800
Inner diameter

(mm)

Ф390 ф500 ф600 Ф800
Rotation speed(rpm) 3700 3700 3500rpm 3200
Motor power(kw) 30 37 55 75
Output(kg/h) 50-1500 150-280 200-550 450-850
Fineness(mesh) 15-120 15-120 15-120 15-120
Dimension(mm) 1250×1500×1530 5900×1450×2900 6200×1550×3100 6500×1650×3300
Weight(kg) 1000 1200 1650 2800
