Products Description
Mainly used for producing PVC, TPU, Multi-cavity tube etc.
Parts List:
| No | Parts description | Qty | Remarks |
| 1 | Vacuum auto-loader(300kg) | 1 set | |
| 2 | Hopper dryer(25kg) | 1 set | |
| 3 | Single screw extruder | 1 set | S304 SS frame |
| 4 | High precise die head | 1 set | Materials: S136 |
| 5 | Vacuum water cooling tank | 1 set | Materials: S304 stainless steel |
| 6 | Single/Dual-axis laser gauge | 1 set | Measuring accuracy: 0.001mm |
| 7 | Haul-off and cutting device | 1 set | S304 SS frame |
| 8 | Belt conveyor and collector | 1 set | S304 SS frame |
Keywords:
PVC pipe extruder, pvc pipe production line, PVC Medical tube production line, plastic pipe extruder, plastic machinery,
pvc extruder, PVC Medical tube machine, PVC Medical tube extruder, Medical tube production line, plastic pipe machine,
plastic pipe making machine, pvc pipe making machine
Tags:
Technical parameter

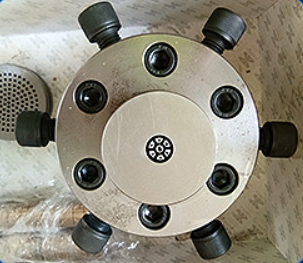

Die and moulder
Electric control system
Haul off and cutting unit
Caliper unit
| Model | Tube diameter | Screw size | Screw L/D | Motor power | Capacity |
| TS-35 | 1-4mm | 35mm | 28:1 | 5.5kw | 8-10kg/h |
| TS-45 | 2-8mm | 45mm | 28:1 | 7.5kw/11kw | 15-18kg/h |
| TS-55 | 8-16mm | 55mm | 28:1 | 11/15kw | 30-35kg/h |
