Products Description

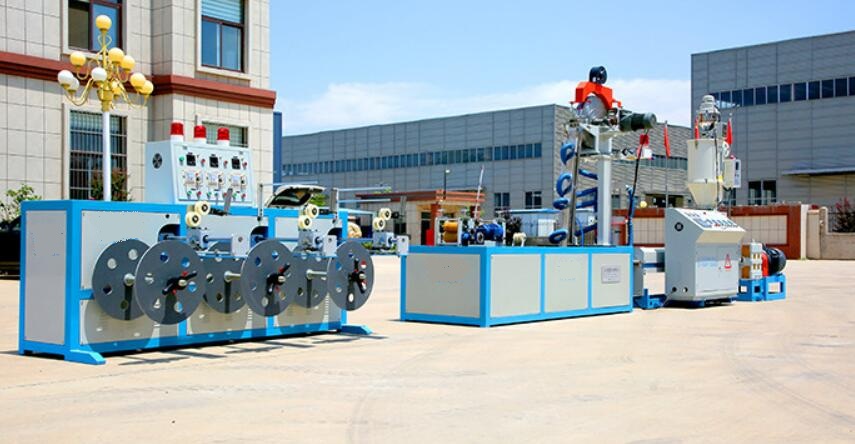

Single wing labyrinth drip irrigation belt production line / hairy belt machine
Production line component:
| No. | Device | Quantity |
| 1 | SJ-65/30 extruder | 1 set |
| 2 | Automatic material feeding and drying system | 1 set |
| 3 | Two layers die- head | 1 set |
| 4 | Sizing system | 1 set |
| 5 | Forming wheel | 1 set |
| 6 | Cooling system | 1 set |
| 7 | Tractor | 1 set |
| 8 | Winding machine | 1 set |
| 9 | Electric cabinet | 1 set |
Tags:
Technical parameter
Single screw extruder
Forming traction device
Winder device
| Production speed | 0-110m/min |
| Diameter of forming wheel | Ø380 446 487 580 |
| Two layers die head | AB die head |
| Cooling system | Double air ring cooling |
| Specification for tape | Ø16 |
| Thickness of the tape | 0.15-0.2mm（adjustable） |
| Materials | LDPE,HDPE |
| Overall dimension | 12m*1.5m*2.8m |
| Total weight | 3000kg |
