Products Description

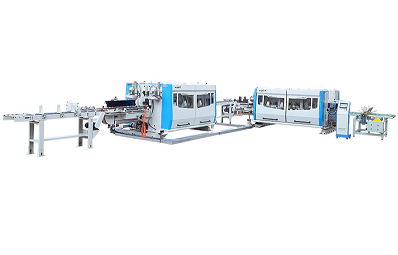

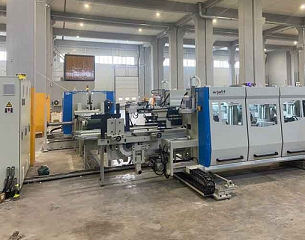

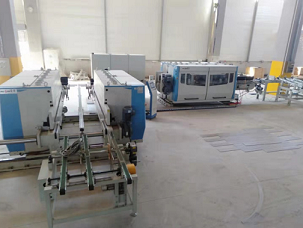

1), 此生产线主要用于塑料地板开槽，和分切，背贴，包装等组成自动连线
This production line is mainly used for grooving plastic flooring and forming an automatic connection line with slitting, back bonding, packaging, etc
2),塑料地板专用锯根据客户需要有先定长再纵向分切，或直接纵向分切
The special saw for plastic flooring can be customized according to customer requirements, either by first determining the length and then cutting longitudinally or by directly cutting longitudinally
3),此类设备主要功能是把板材分切成几段或多片，根据不同规格和不同材质合理选择机型
The main function of this type of equipment is to cut the sheet into several sections or multiple pieces. The model should be reasonably selected according to different specifications and materials

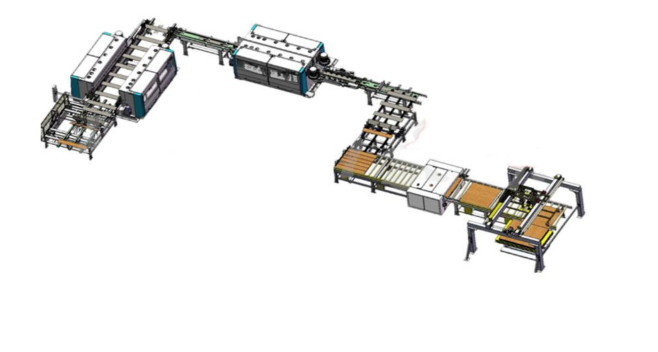

Composition of the production line:
| No | Machine name | Quantity |
| 1 | Manual feeding (Optional: Automatic feeding device) | 1 set |
| 2 | SPC board rip saw machine(cutting machine) | 1 set |
| 3 | Automatic conveyor line | 1 set |
| 4 | Double End Tenoner(Lengthways) | 1 set |
| 5 | Double End Tenoner(Across) | 1 set |
| 6 | Manual Packing(Optional: Automatic packing line) | 1 set |
1, Longitudinal double-end tenoner
纵向双端铣采用高精密输送链条，加工范围大。该机型速度快，精度高。主要运用在对长条形的板材的边缘进行加工处理. 刀轴配置4工位8轴，5工位10轴和6工位12轴。
Longitudinal double-end milling adopts high-precision conveyor chains and has a wide processing range. This model is fast and highly accurate. It is mainly used for processing the edges of long strip-shaped plates. The tool shafts are configured with 4 workstations and 8 axes, 5 workstations and 10 axes, and 6 workstations and 12 axes.
Main technical parameter:
| Type | DTL | DTLS/DTLZ | DTE | STEZ | DTEK |
| Board width | 185-600mm | 125-600mm | 150-800mm | 125-600mm | 125-600mm |
| Working thickness | 4-25mm | 4-25mm | 3-25mm | 3-25mm | 4-25mm |
| Station quantity | 5 or 6 | 5 or 6 | 5 or 6 or 8 | 5 or 6 or 8 | 5 or 6 or 8 |
| Feeding speed | 80m/min | 80m/min | 100m/min | 1080m/min | 100m/min |
| Main spindle power | 5.5/8(kw) | 5.5/8(kw) | 5.5/8/11(kw) | 5.5/8/11(kw) | 5.5/8/11(kw) |
| Working platform height | 1100mm | 1100mm | 1100mm | 1100mm | 1100mm |
2, Transverse double-end Tenoner
横向双端铣在左右两条高精密输送链条上安装了可推料钩，保证板材加工后和基准边的垂直精度，前段配有光电控制蓄板料仓，方便自动进料。
根据板材特性，各工位上可以加配跳刀，刮刀，上下锯，抛光等功能轴，也可以预留工位.
The transverse double-end milling machine is equipped with pushable material hooks on the two high-precision conveyor chains on the left and right to ensure the vertical accuracy of the processed plates to the reference edge. The front end is also equipped with a photoelectric control plate storage bin for convenient automatic feeding.
According to the characteristics of the sheet material, functional axes such as jump knives, scrapers, up and down saws, and polishing can be added to each workstation, or workstations can be reserved.
Main technical parameter:
| Type | DT | DTH | DTKT |
| Board width | 400-1500/2500(mm) | 400-1500/2500(mm) | 400-250(mm) |
| Working thickness | 3-25mm | 3-25mm | 8-25mm |
| Station quantity | 4 or 5 or 6 | 6 or 8 | 4 or 5 or 6 |
| Feeding speed | 50m/min | 50m/min | 40m/min |
| Main spindle power | 3/5.5kw | 3/5.5kw | 3/5.5kw |
| Working platform height | 950mm | 950mm | 1000mm |
3, Multi rip saw
此设备主要功能是把板材分切成几段或多片，根据不同的规格和不同材质合理选择机型。
The main function of this equipment is to cut the sheet into several sections or multiple pieces. The model should be reasonably selected according to different specifications and materials.
Main technical parameter:
| Type | HJC12 | HJC21 | HJP15 | HJZ15 |
| Board width | 1250mm | 2100mm | 1500mm | 1500mm |
| Board width | 3-25mm | 6-25mm | 2-12mm | 6-50mm |
| Saw blade size | 300 * 80(mm) | 300 * 100(mm) | 300 * 80(mm) | 300 * 100(mm) |
| Feeding speed | 30m/min | 30m/min | 40m/min | 40m/min |
| Saw spindle power | 15kw | 22kw | 15kw | 45/90kw |
| Saw blade quantity | 4-10 pieces | 4-10 pieces | 4-10 pieces | 4-10 pieces |
| Working table height | 900mm | 900mm | 950mm | 1100mm |
